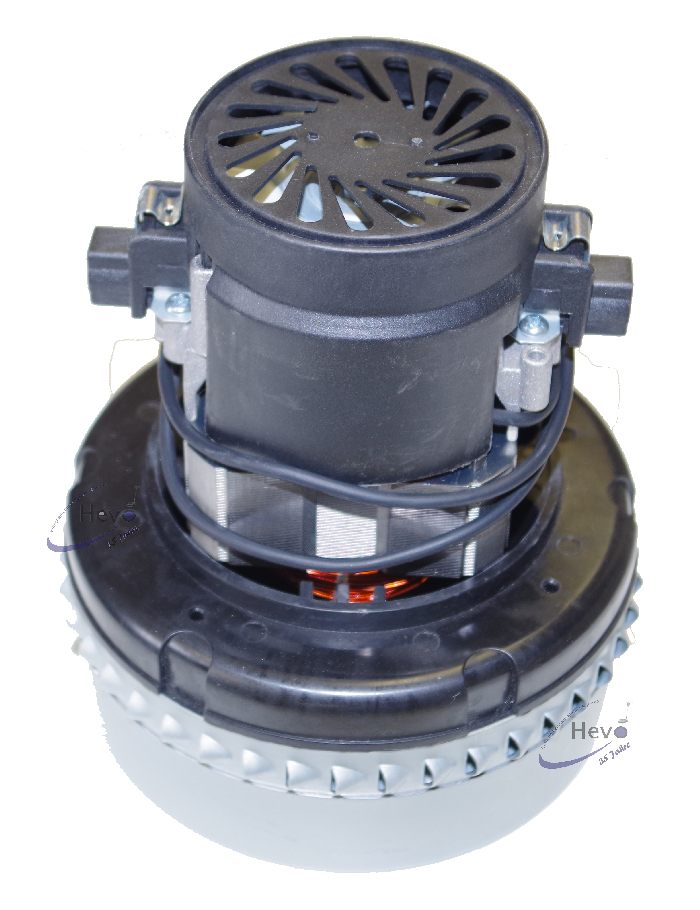

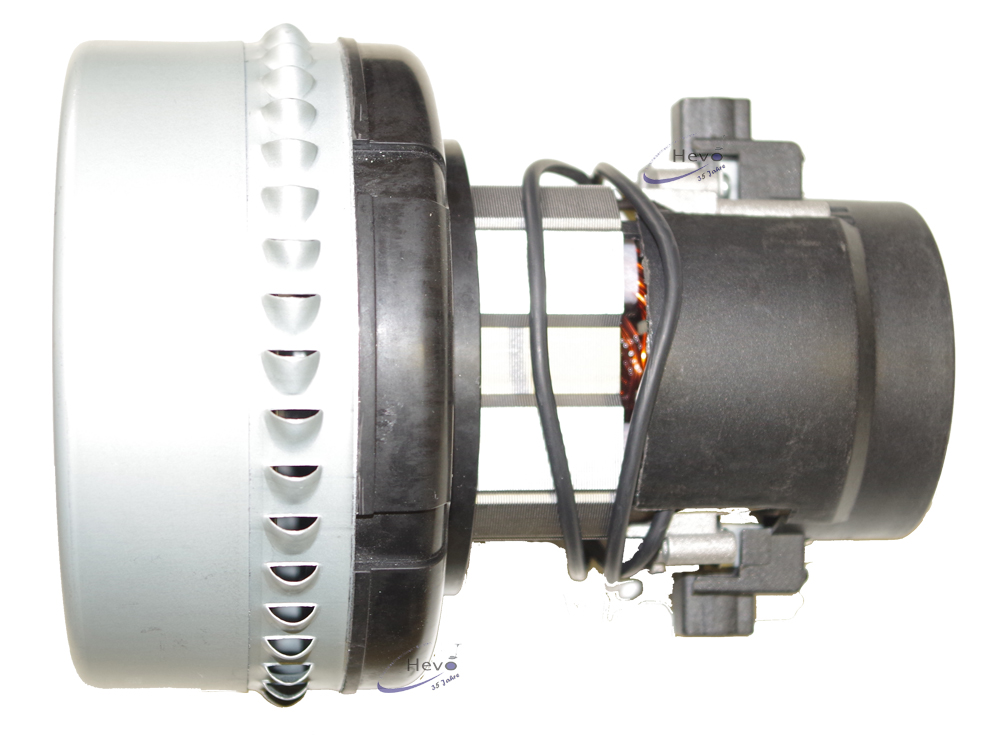

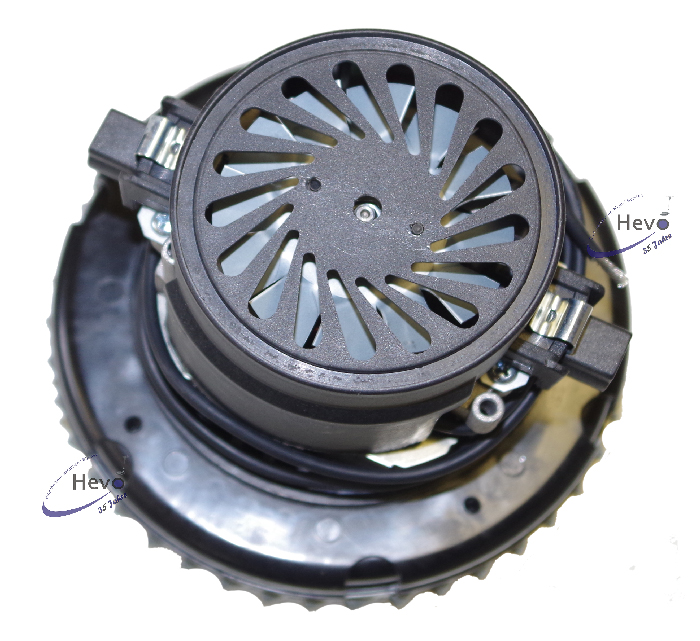

Vacuum motor Filtex TSP 300
For wet and dry vacuum cleaner.
TP = Thermal Protector, the engine shuts off when it overheats. Bypass - Motor i.e. separate intake and cooling air, the lower part is sealed off and the electrical equipment is cooled by a built-in cooling fan. Peripheral air outlet, i.e. The intake air is blown out through the engine slots.

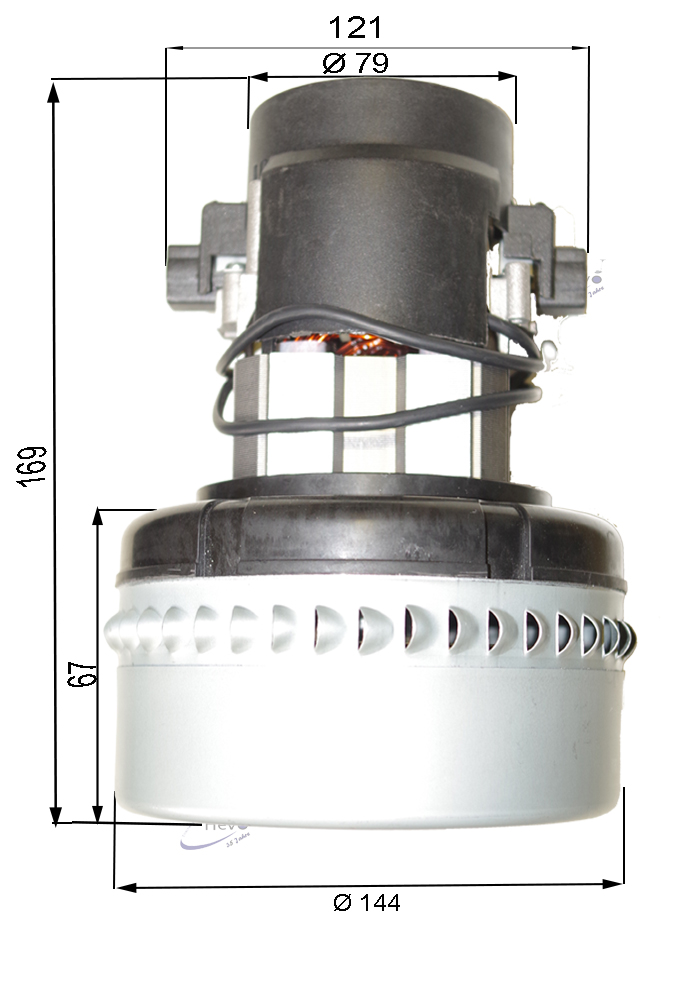

Overall height 169 mm, height 67 mm turbine, turbine Ø 144 mm.
This product is not an original spare part from the quoted manufacturer. Due to it is high quality the product is widely used by manufacturers, resellers and end users.
It is a product with the original manufacturer’s quality.
TP = Thermal Protector, the engine shuts off when it overheats. Bypass - Motor i.e. separate intake and cooling air, the lower part is sealed off and the electrical equipment is cooled by a built-in cooling fan. Peripheral air outlet, i.e. The intake air is blown out through the engine slots.
Overall height 169 mm, height 67 mm turbine, turbine Ø 144 mm.
This product is not an original spare part from the quoted manufacturer. Due to it is high quality the product is widely used by manufacturers, resellers and end users.
It is a product with the original manufacturer’s quality.
| Motor Type | SMO.116 126-00 |
| Rating Voltage（V） | 230 |
| Rating Frequency（Hz） | 50 |
| Rating Input Power（W） | 1100 |
| Maximal Airflow（M³/min） | 3 |
| Maximal Suction（Kpa） | 24,5 |
| Maximal Air Power（W） | 410 |
| Maximal Efficiency（%） | 35% |
| Noise（M）（dBA） | ≤94 |
| Insulation Class | B |
| Lifespan | >500 |
-
